Impressaclad™ Wall Panel

Features

• 16” wide coverage; lengths up to 32’
• Heavy 20 gauge embossed steel panel
• Concealed fastener system
• 30 year warranty
• Tongue and groove fit

Benefits

• Interlocking panel and concealed fasteners provide secure installation
• Embossed surface provides attractive architectural appearance
• Lightweight and stackable, ideal for applications up to six stories
• Works great as a soffit panel
• Can be installed over hat channels to achieve thicker insulation and higher R-values

An Interlocking Architectural Metal Wall Panel System with Durable, Embossed Finish

ImpressaClad™ will satisfy most demanding architectural requirements for durable and attractive metal wall panel systems.

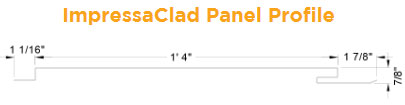

Each ImpressaClad panel is manufactured from sturdy 20-gauge galvanized steel. Panel width installed is 16”. Both top and bottom of every panel has a 5/8” fold back. Stacking trim allows panels to rest end-to-end for installation up a vertical wall, allowing for taller elevation applications. Panel lengths range from 14” to 32’. ImpressaClad panels are backed by a 30-year warranty.

The panels are available in 4 standard Kynar colors (custom colors available). Kynar paint finishes are respected for their durability, resistance and color retention. The swatches shown below are an approximation of actual paint colors. Variations may occur between sample materials and finished product. For actual paint color, ask for a painted metal chip.
