RPR™ Wall Panel

RPR™ Wall Panel

Features

  • Reverse rolled version of VP’s Panel Rib design
  • Available in 26 or 24 gauge
  • 36” wide panel with 1-3/16” deep ribs 12” on center
  • Available in lengths up to 48’*Variety of color options with KXL finish and a 25-year paint warranty
  • Installed with stainless steel capped self-drilling color-matched fasteners
  • Fasteners installed in recessed rib

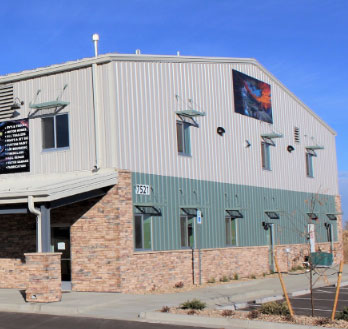

RPR wall panel photo

Benefits

  • Variety of gauge thicknesses to meet most codes and specifications
  • Engineered for durability and aesthetically pleasing
  • Superior paint finishes reduce maintenance costs
  • RPR’s recessed fastener locations give the panel a semi-concealed profile with bold architectural lines
  • Accomodates more insulation for higher energy efficiency



Low Maintenance Exterior Wall System

RPR panel is an attractive, high quality, low maintenance panel based on a “reverse rolled” version of VP’s standard Panel Rib design. RPR is a 36” wide panel with a 1-3/16” rib profile. Available in lengths of up to 48’, RPR can provide continuous coverage from foundation to eave, eliminating the need for end laps and assuring superior weather tightness.

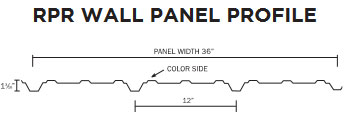

RPR wall panel profile

RPR panel’s deeper profile can accommodate up to 6” of faced blanket nsulation or up to 2-1/2” of rigid board, creating a more thermal efficient building envelope.

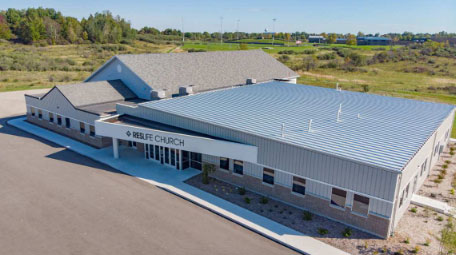

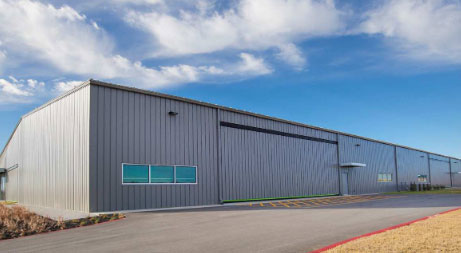

RPR wall panel photo3RPR wall panel photo2

All gauges of RPR are available in a variety of standard colors with KXL finishes and acrylic coated Galvalume®. The KXL paint system is a PVDF finish applied to the zinc or zinc aluminum coated steel to give a long-life color that resists fading and chalking. KXL is a 1 mil nom. PVDF finish with 70% Kynar® 500 or Hylar® 5000 standard. For complete color selections, refer to our color card #6021.
