Panel Rib™ Roof

Panel Rib™ Roof

Panel Rib Roof panels are standard in 26 gauge with 24 gauge option. Each is 36” wide with 1-3/16” high ribs and is available in lengths up to 48’. The panel includes a purlin bearing edge (PBE) for superior strength and rigidity and is attached with self-drilling, stainless steel capped color-matched fasteners. Installation is fast since no field seaming is required. The panel’s wide module and long length minimizes sidelaps and endlaps which also increases installation speed.

Benefits:

  • Purlin bearing edge improves weathertightness and simplifies installation
  • Economical quality roof system that delivers years of performance
  • Attractive color options and enhanced energy-efficiency with cool color choices
  • Meets the highest standards for certification in the industry

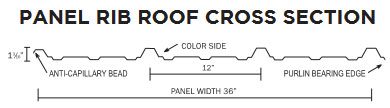

panel rib cross sectionSealant is applied to every metal-to-metal contact point, resulting in a weather-resistant roof. Roof slope can be as low as ½:12”. Panel Rib Roof can accommodate up to 6” of fiberglass blanket insulation for high levels of energy efficiency.

All gauges of Panel Rib roof are available with KXL finish in “cool rated” color options as well as unpainted Galvalume®. Ask AM1 Roofing Inc. about VP’s Standard Roof Colors for selections.

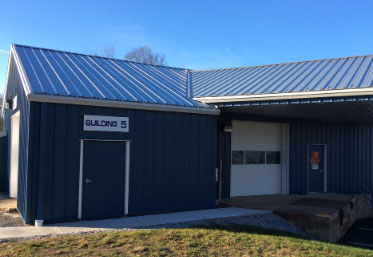

panel rib roofFeatures:

  • 26 gauge standard thickness, 24 & 22 gauge optional
  • 36” coverage with 1 3/16” high ribs 12” on center
  • Roof Slopes as low as 1/2”:12”
  • Lengths up to 48’
  • Installed with self-drilling stainless steel capped fasteners
  • Available in clear-coated Galvalume® and a variety of color options with KXL finish and 25 year material warranty
  • UL 60 and UL 90 wind uplift ratings available
  • Florida and Miami-Dade County product approval
