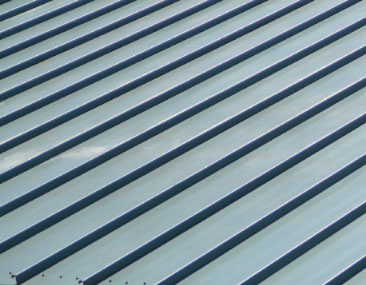

SLR II™ Roof

SLR II™ Roof

For a roof that combines good looks, flexibility and strength, VP’s SLR II Architectural Standing Seam Roof delivers an attractive and versatile solution.

SLR II panels are standard in either 24 gauge steel or 22 gauge steel with a 2 inch standing seam. Panels are factory-formed to VP’s exact specifications. Further, panels are factory punched and notched to ensure better fit and modularity on longer panel lengths. The panel is 16” wide and is available in lengths up to 50’. Shipping restrictions may limit the length. The panel includes a factory installed sealant bead in the side joint for increased weather tightness.

Benefits:

  • Provides an attractive, architectural appearance and long-term, trouble-free performance
  • Colors to complement your building and cool finishes to provide energy efficiency
  • Meets highest industry standards for performance and is backed by industry leading warranties
  • Can accommodate up to 6 inches of fiberglass blanket insulation for high levels of energy efficiency
  • Includes a selection of architecturally detailed ridge, gable and sidewall trims for finished appearance and long-term weather tight performance

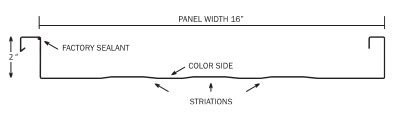

slr II roof panel drawingSLR II panels are field-machine seamed in-place, yielding a single unit membrane. The panels are installed with thermally responsive galvanized panel clips combining a 22 gauge hook and a 16 slr II roof steel buildinggauge base. These clips allow for thermal movement 1” in either direction. SLR II’s concealed clips attach the panels to structural members and minimize the need for through-the-roof fasteners. SLR II can be installed over a variety of substrates or open framing. While typically used on higher slopes and high profile roofs, roof slopes can be as low as ¼:12. SLR II roof systems include a selection of architecturally detailed ridge, gable and sidewall trims to give your building an attractive finished appearance and long-term weather tight performance.

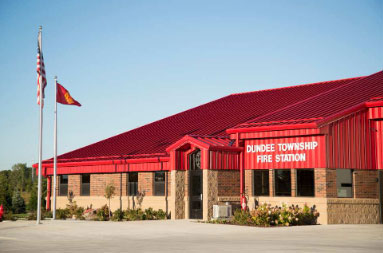

Features:slr II dundee fire station

  • Architectural panels for low or high slope applications
  • Field seamed to provide a weather resistant joint
  • 16” coverage with 2” rib depth
  • UL 90 rated system
  • US Army Corps of Engineers approved per CEGS 07416
  • 24 & 22 gauge AZ50 steel offered in a variety of cool roof colors
  • Thermally responsive panel clips combining a 22 gauge hook and a 16 gauge base
