SSR™ Standing Seam Roof

VP’s SSR™ Standing Seam Roof offers economical construction and superior performance backed by an available 20-year weather tightness warranty.

Features:

• Roof slopes as low as ¼”:12"

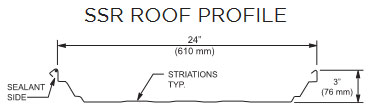

• Panels offer 24” coverage with 3” high
  trapezoidal ribs
• Available in 24 ga. standard thickness; 22 ga. optional
• Available in acrylic coated Galvalume® coated sheet steel or KXL cool colors
• Exclusive ridge cap and clip design allow for thermal movement
• 360º seam creates weathertight seal
• Panels meet UL 90 and FM Class 1 ratings, ESR-2527 and Florida approvals

Made from sturdy Galvalume® coated sheet steel, SSR panels come standard in 24-gauge, with 22-gauge optional. Finish options include acrylic coated Galvalume® or KXL paint. See VP’s Standard Wall & Roof Colors (#6021) for KXL selections. Standard roof pitches range from ¼”:12” up to 4”:12” or greater to achieve the desired roof slope.

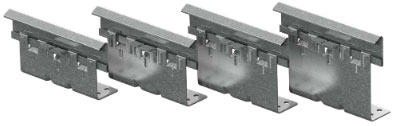

VP’s Standard and Heavy Roof Clips are available in fourheights: 3½”, 4”, 4½”, and 5” tall.

SSR panels are factory-formed and field-machine seamed in place yielding a single unit membrane. The patented SSR ridge system is efficiently installed requiring only one weather-sealed joint. The special clips used to attach SSR panels to structural members are designed to allow panel movement up to 1-5/8” in either direction to compensate for thermal effects. VP’s concealed clips minimize the need for through-the-roof fasteners.

Benefits:

• Ensures building is designed and manufactured to accommodate required interior clearances and roof supports
• Unique ridge and clip design delivers long-term weathertightness
• The panels are mechanically seamed to a full 360° interlock to form an effective single membrane
• Designed for reliable performance backed by a 25-year finish warranty
• Available in cool colors for improved energy efficiency

Varco Pruden Buildings meets the highest standards and certifications in the industry, including ESR-2527 & Florida approvals. UL Class 90 rating for wind uplift and FM Class 1-60, 1-90 and 1-105 ratings are available for most applications.

SSR panels can accommodate up to 9” of faced fiberglass blanket insulation for high levels of energy efficiency. For greater thermal performance, VP’s ThermaLift™ system allows up to 15” of combined thermal block and insulation. Panels are available in lengths up to 60 feet, which minimizes requirements for end laps. SSR’s innovative ridge system and unique panel design provides a long-lasting, weather-resistant roof.
