TextureClad™ Wall Panel

Features

• Easy installation with concealed fasteners
• Tongue and groove fit 16” width coverage; lengths up to 30’
• 20 year warranty
• 24 standard colors (custom colors available)
• 20 ga. panel with 24 and 20 ga. trims

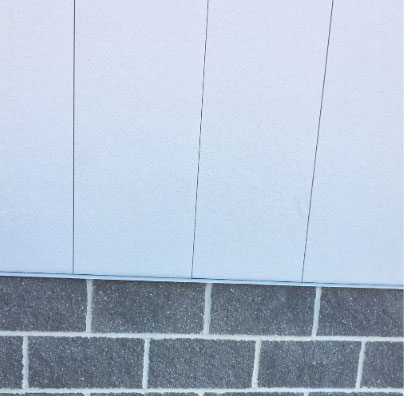

• Durable stucco finish

Benefits

• TextureClad provides the appearance of stucco without the additional cost
• Works great as a soffit panel
• Great alternative when covenants restrict use of metal panel appearance
• Lightweight and stackable, ideal for applications up to six stories
• Can be installed over hat channels to achieve thicker insulation and higher R-values

An Interlocking Architectural Metal Wall Panel System with the Rich Texture of Stucco

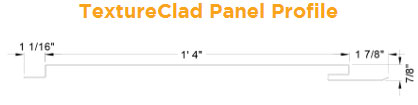

The stucco-like appearance of TextureClad™ will satisfy most local building ordinances that prohibit other metal wall panel applications. These panels are durable and provide protection from ultraviolet rays. Each TextureClad panel is manufactured from 20-gauge galvanized steel. Panel width installed is 16”. Both top and bottom of every panel has a 5/8” fold back. Formed ends allow the panel to rest end-to-end for stacking on a vertical wall, allowing for applications up to six stories. Panel lengths range from 14” to 30’.

Primed on both sides, the baked-on base coat is specifically formulated to adhere to the textured finish. Factory applied textured finish is a proprietary formula. The finish is resistant to water, cracking, chalking, mildew and loss of adhesion.
