Thermalclad™ Insulated Metal Wall Panels

Features:

• Offset double tongue-and-groove side joint with fastener head and clip concealed

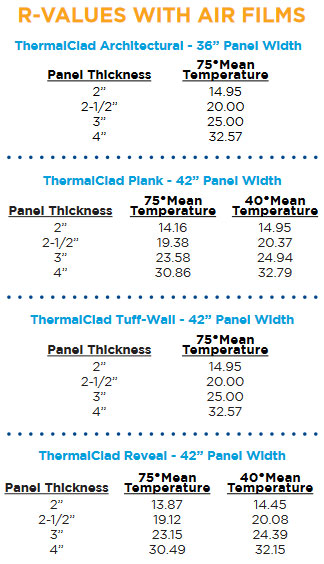

• R-values up to R-34.06 available
• Thicknesses: 2”, 2 1⁄2”, 3” and 4”; Lengths: 8’-53’ on 42” wide
• Factory-Mutual Class 1 approval
• Exterior Embossed Surface, except Tuff-Wall

• Architectural: Flush appearance
• Shallow Plank: For clean lines
• Tuff-Wall™: An insulated metal panel with the look of stucco
• Reveal: Bold lines

Benefits:

• Architectural: 36” Coverage with lengths from 8’-32’. 22 ga. G-90 steel external and 26 ga. internal standard
• Shallow Plank: 42” Coverage with 26 ga. G-90 steel external with 26 ga. internal standard; 24 ga. external optional
• Tuff-Wall™: 42” panel width with 24 ga. steel. Standard lengths from 8’-40’ and a 10-year limited warranty. Durable finish highly resistant to impact and abrasion.
• Reveal: 42” Coverage with 26 ga. G-90 steel external and 26 ga. internal standard; 24 ga. external optional.

VP’s Architectural Wall Panels are designed for high profile projects that require a flush exterior wall appearance. This panel is 36” wide and available in four thicknesses, each with an insulated core made from foamed in-place, blister free, non-CFC polyurethane. Maximum panel length is 32’-0”.

VP’s ThermalClad Shallow Plank panels feature sturdy 26 gauge steel panels on both exterior and interior faces. The exterior panel is factory-formed with vertical lines to present an attractive and durable finished wall ideally suited for most commercial and industrial buildings.

VP’s Tuff-Wall™ is an exceptionally attractive stucco-like insulated wall panel that provides a highly-desired look. The panel’s textured surface has a hard aggregated fiber reinforced polymer coating created with the factory applied Tuff-Cote™ finish system. Tuff-Cote finish offers an extremely durable, impact and abrasion resistant coating that withstands severe weather conditions.

VP’s ThermalClad Reveal™ Panels feature sturdy 26 gauge steel on both exterior and interior faces. The exterior face is factory-formed with bold vertical lines to present an attractive and durable finished wall, ideally suited for most commercial and industrial buildings.
