Vee Rib™ Wall

Vee Rib™ Wall

Features

  • 36 “ wide panel with 1-3/16” recessed ribs 12” on center
  • Lengths up to 48’
  • Embossed Finish
  • Semi-concealed fasteners
  • Florida and Miami-Dade County Approved

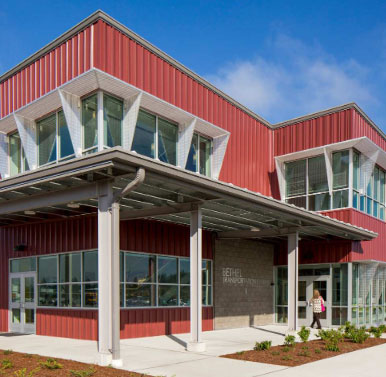

vee rib wall panel photo

Benefits

  • Variety of gauge thicknesses to meet most codes and specifications
  • Engineered for durability and aesthetically pleasing
  • Long panel lengths minimize end laps for optimum wall integrity
  • Superior paint finishes reduces maintenance costs
  • Recessed fastener locations give the panel a semi-concealed profile with bold
    architectural lines
  • Embossed surface provides attractive architectural finish



The Vee Rib wall system can provide a more architectural approach than concrete, masonry or even wood alternatives.

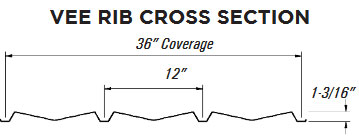

Vee rib wall panel cross section

Vee Rib wall panels are standard 26 gauge AZ50 steel or optional 24 gauge. The panel is 36” wide with a V-groove pattern creating 1-3/16” reveals. It is available in lengths up to 48‘ which can provide a continuous panel from foundation to eave. This can eliminate the need for endlaps and assures you of wall integrity and weathertightness.

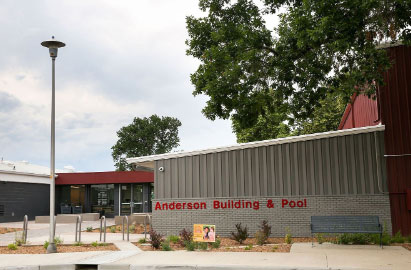

Vee rib wall panel example

Vee Rib can effectively utilize up to 6” of blanket insulation as well as up to 2-1/2” of rigid board insulation. Your VP Builder can assist you in selecting the optimal insulation approach, considering up-front costs and long term energy savings.

All gauges of Vee Rib are available in a wide selection of standard colors with KXL finishes. The KXL paint system is a PVDF finish applied to the zinc aluminum coated steel to give a long-life color that resists fading and chalking. KXL is a 1 mil nom. PVDF finish with 70% Kynar® 500 or Hylar® 5000 standard.
